class DisplayPanel extends JPanel
{
private Image numbers;
private int xcorner, ycorner;
private int width, height;
private double xleft, xright, xincrement;
private int ybottom, ytop;
private String name[] = { "sin", "cos", "tan", "csc", "sec", "cot" };
private String numerator[] = { "opposite","adjacent","opposite","hypotenuse","hypotenuse","adjacent" };
private String denominator[] = { "hypotenuse","hypotenuse","adjacent","opposite","adjacent","opposite" };
public DisplayPanel ( )
{

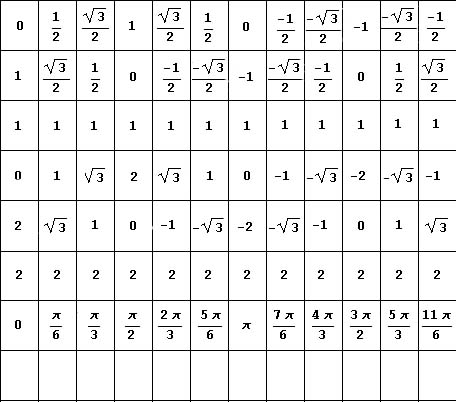

numbers = getImage ( getDocumentBase ( ), "Numbers.jpg" );
WaitForImage ( this, numbers );
setBackground ( Color.white );
width = 760;
height = 300;
xleft = ( -Math.PI / 6.0 );
xright = ( 19.0 * Math.PI / 6.0 );
xincrement = ( Math.PI / 6.0 );
ybottom = -3;
ytop = 3;
xcorner = 10;
ycorner = 230;
}
public void paintComponent(Graphics g)
{
super.paintComponent ( g );
PaintFunction ( g );
DrawUnitCircle ( g );
DisplayTrigRatio ( g );
}
public void WaitForImage ( JPanel component, Image image )
{
MediaTracker tracker = new MediaTracker ( component );
try
{
tracker.addImage ( image, 0 );
tracker.waitForID ( 0 );
}
catch ( InterruptedException e )
{
e.printStackTrace ( );
}
}
public void DrawUnitCircle ( Graphics g )
{
int xpos = 50, ypos = 15, radius = 100;
int col = ((int)(xval * 180 / Math.PI + 0.1) % 360) / 30;
int oppmovefact = -25;
if ( Math.cos(xval) > 0.0 )
{
oppmovefact *= -1;
}
g.drawImage( numbers, (int)(xpos + radius + radius * Math.cos (xval)) - 15 + oppmovefact,
(int)(ypos + radius - radius * Math.sin (xval) / 2.0) - 20,
(int)(xpos + radius + radius * Math.cos (xval)) + 22 + oppmovefact,
(int)(ypos + radius - radius * Math.sin (xval) / 2.0) + 27, col * 38 + 1, 1,
( col + 1 ) * 38, 50, this );
g.drawImage( numbers, (int)(xpos + radius + radius * Math.cos (xval) / 2.0) - 10,
(int)(ypos + radius - radius * Math.sin (xval)) - 10,
(int)(xpos + radius + radius * Math.cos (xval) / 2.0) + 27,
(int)(ypos + radius - radius * Math.sin (xval)) + 37, col * 38 + 1, 51,
( col + 1 ) * 38, 100, this );
g.setColor ( Color.gray );
g.drawOval ( xpos, ypos, 2 * radius, 2 * radius );
g.drawOval ( xpos + 1, ypos + 1, 2 * radius - 2, 2 * radius - 2 );
g.drawOval ( xpos + 2, ypos + 2, 2 * radius - 4, 2 * radius - 4 );
g.setColor ( Color.red );
for ( int i = -1; i <= 1; i++ )
{
if ( choice == 1 || choice == 4 )
g.setColor ( Color.lightGray );
else if ( choice == 3 || choice == 5 )
g.setColor ( Color.blue );
else
g.setColor ( Color.red );
g.drawLine ( xpos + radius + (int)(Math.cos(xval)*radius) + i, ypos + radius,
xpos + radius + (int)(Math.cos(xval)*radius) + i,
ypos + radius - (int)(Math.sin(xval)*radius) );
if ( choice == 0 || choice == 3 )
g.setColor ( Color.lightGray );
else if ( choice == 2 || choice == 4 )
g.setColor ( Color.blue );
else
g.setColor ( Color.red );
g.drawLine ( xpos + radius, ypos + radius + i,
xpos + radius + (int)(Math.cos(xval)*radius), ypos + radius + i );
if ( choice == 2 || choice == 5 )
g.setColor ( Color.lightGray );
else if ( choice == 0 || choice == 1 )
g.setColor ( Color.blue );
else
g.setColor ( Color.red );
g.drawLine ( xpos + radius, ypos + radius + i, xpos + radius + (int)(Math.cos(xval)*radius),
ypos + radius - (int)(Math.sin(xval)*radius) + i );
}
}
public void DisplayTrigRatio ( Graphics g )
{
g.setColor ( Color.black );
Font textFont = new Font ( "SansSerif", Font.BOLD, 28 );
g.setFont ( textFont );
g.drawString ( name[choice] + " " + (int)(xval * 180 / Math.PI + 0.1) + " =", 300, 65 );
int row1 = 0, row2 = 0;
switch (choice) {
case 0:
{
row1 = 0;
row2 = 2;
break;
}
case 1:
{
row1 = 1;
row2 = 2;
break;
}
case 2:
{
row1 = 0;
row2 = 1;
break;
}
case 3:
{
row1 = 2;
row2 = 0;
break;
}
case 4:
{
row1 = 2;
row2 = 2;
break;
}
case 5:
{
row1 = 1;
row2 = 0;
break;
}
}
int col = ((int)(xval * 180 / Math.PI + 0.1) % 360) / 30;
g.drawImage( numbers, 450, 5, 487,
54, col * 38 + 1, row1 * 50 + 1,
( col + 1 ) * 38, ( row1 + 1 ) * 50, this );
g.drawImage( numbers, 450, 55, 487,
104, col * 38 + 1, row2 * 50 + 1,
( col + 1 ) * 38, ( row2 + 1 ) * 50, this );
g.fillRect ( 445, 55, 40, 4 );
if ( ((int)(xval * 180 / Math.PI + 0.1) % 360) % 90 != 0 )
{
g.drawString ( "=", 510, 65 );
row1 += 3;
row2 += 3;
g.drawImage( numbers, 540, 13, 577,
60, col * 38 + 1, row1 * 50 + 3,
( col + 1 ) * 38, ( row1 + 1 ) * 50, this );
g.drawImage( numbers, 540, 55, 577,
102, col * 38 + 1, row2 * 50 + 3,
( col + 1 ) * 38, ( row2 + 1 ) * 50, this );
g.fillRect ( 540, 55, 40, 4 );
}
g.drawString ( "y = " + name[choice] + " x =", 300, 180 );
g.fillRect ( 490, 170, 160, 4 );
g.setColor ( Color.red );
g.drawString ( numerator[choice], 490, 155 );
g.setColor ( Color.blue );
g.drawString ( denominator[choice], 490, 205 );
}
public void PaintFunction ( Graphics g )
{
g.setColor ( Color.black );
g.fillRect ( xcorner - 2, ycorner - 2, width + 4, height + 4 );
g.setColor ( Color.white );
g.fillRect ( xcorner + 2, ycorner + 2, width - 4, height - 4 );
g.setColor ( Color.black );
g.fillRect ( xcorner + (int)(width / (xright - xleft) * (0.0 - xleft)) - 2, ycorner, 4, height );
g.fillRect ( xcorner, ycorner + (int)(height / (double)(ytop - ybottom) * ytop) - 2, width, 4 );
for ( double i = xleft; i <= xright; i += xincrement )
{
g.fillRect ( xcorner + (int)(width / (xright - xleft) * (i - xleft)) - 2,
ycorner + (int)(height / (double)(ytop - ybottom) * ytop) - 8, 4, 16 );
g.drawLine ( xcorner + (int)(width / (double)(xright - xleft) * (i - xleft)), ycorner,
xcorner + (int)(width / (double)(xright - xleft) * (i - xleft)), ycorner + height );
}
for ( int i = ybottom; i <= ytop; i++ )
{
g.fillRect ( xcorner + (int)(width / (xright - xleft) * (0.0 - xleft)) - 8,
ycorner + (int)(height /(double)(ytop - ybottom) * (i - ybottom)) - 2, 16, 4 );
g.drawLine ( xcorner, ycorner + (int)(height / (double)(ytop - ybottom) * (i - ybottom)),
xcorner + width, ycorner + (int)(height / (double)(ytop - ybottom) * (i - ybottom)) );
}
double y, prevy, prevx;
prevx = xleft;
prevy = GetValue ( prevx );
g.setColor ( Color.blue );
for ( double x = xleft; x <= xval; x += 0.01 )
{
y = GetValue ( x );
for ( int i = -3; i <= 0; i++ )
{
if ( y > -10 && y < 10 )
g.drawLine ( xcorner + (int)(width / (xright - xleft) * (x - xleft)),
ycorner + height - (int)(height / (double)(ytop - ybottom) * (y - ybottom)) + i,
xcorner + (int)(width / (xright - xleft) * (prevx - xleft)),
ycorner + height-(int)(height / (double)(ytop - ybottom) * (prevy - ybottom)) + i );
}
prevx = x;
prevy = y;
}
g.setColor ( Color.red );
if ( GetValue ( xval ) < 10 && GetValue ( xval ) > -10 )
g.fillOval ( xcorner + (int)(width / (xright - xleft) * (xval - xleft)) - 5,
ycorner + height - (int)(height / (double)(ytop - ybottom) * (GetValue(xval) - ybottom)) - 5, 10, 10 );
g.setColor ( Color.white );
g.fillRect ( 0, 0, xcorner - 2, height + ycorner );
g.fillRect ( 0, 0, width + xcorner, ycorner - 2 );
g.fillRect ( 0, ycorner + height + 2, width + xcorner, height + ycorner );
g.fillRect ( xcorner + width + 2, 0, width + xcorner, height + ycorner );
g.setColor ( Color.black );
}
public double GetValue ( double x )
{
switch ( choice )
{
case 0: return ( Math.sin ( x ) );
case 1: return ( Math.cos ( x ) );
case 2: return ( Math.tan ( x ) );
case 3: return ( 1 / Math.sin ( x ) );
case 4: return ( 1 / Math.cos ( x ) );
case 5: return ( 1 / Math.tan ( x ) );
}
return -1.0;
}
}
